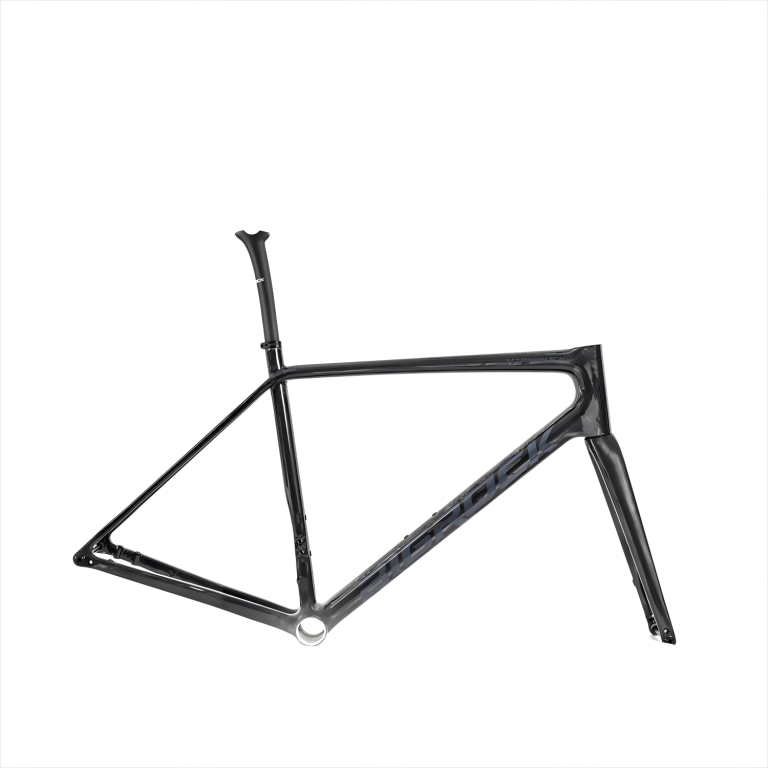

Bigrock Sohtea Superlight Carbon Road Bike Frameset
Beschreibung
A lightweight climbing frame with classic compact road bike geometry. Large round tubes give the best strength to wait ratio for those who prioritize grams over aero savings. One of the best value framesets on our site.
- From 730g (Size XXS)
- Fully integrated
- T800 Carbon
- T47 bottom bracket (85.5mm Wide)
- 30mm Tire Clearance
- Compact Geometry
- Beautifully Finished
Specifications
| Weight | 338g (90*400mm) |
|---|---|
| Accessories | Garmin computer holder with Gopro tripod |
| Frame Size: | XXS 45 | XS 49 | S 52 | M 54 | L 56 | XL 58 | XXL 61 |
|---|---|---|---|---|---|---|---|
| Seat Tube (ST) | 400 | 431 | 462 | 481 | 504 | 532 | 567 |
| Top Tube (TT) | 490 | 508 | 531 | 540 | 562 | 577 | 595 |
| Head Tube (HT) | 102 | 109 | 120 | 137 | 157 | 184 | 204 |
| Seat Angle (STA) | 76 | 75.5 | 74 | 74 | 73.5 | 73.5 | 73 |
| Head Angle (HTA) | 70.5 | 71.75 | 72.5 | 73 | 73.5 | 73.5 | 74 |
| BB Drop (BD) | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| Fork Length (FL) | 369 | 369 | 369 | 369 | 369 | 369 | 369 |
| Front Rake (FR) | 47 | 47 | 47 | 44 | 44 | 44 | 44 |
| Front Center (FC) | 571 | 574 | 577 | 579 | 591 | 605.8 | 612.7 |
| Rear Center (RC) | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheel Base (WB) | 970 | 973 | 975 | 978 | 990 | 1005 | 1012.16 |
| Stack | 502 | 513 | 526 | 543 | 564 | 590 | 610.6 |
| Reach | 365 | 375 | 380 | 384 | 395 | 402 | 408.3 |
| Hub Spec | 142 | 142 | 142 | 142 | 142 | 142 | 142 |
