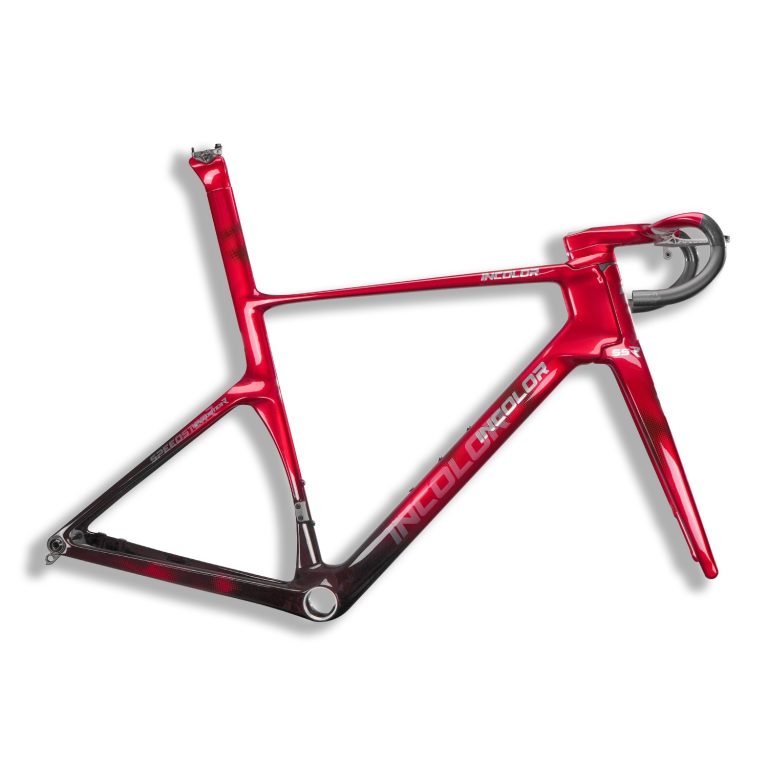

INCOLOR SSR Carbon Disc Brake Road Bike Frameset
Beschreibung
Engineering Excellence. Relentless refinement. Lead-times on the SSR are very long due to demand. Currently looking at 1-2 months from ordering. Message us for specifics. Orders will be fulfilled on first-come, first-served basis.
- INCOLOR’s Ultimate Road Frame
- Dual steerer design narrows the head tube width to just 34 mm
- Integrated seatpost reduces weight and increases compliance by 28%
- Lifetime warranty and crash replacement discount
- Please choose an available size of INCOLOR AEROWAV Handlebar from Optional Components
Specifications
| Wind-tunnel tested | Against INCOLOR’s SR+ and industry leaders |
|---|---|
| Ultra-lightweight | 750g (Integrated Seatpost / Size 54 unpainted without accessories) |
| Note | 2x Chainring Compatibility: Shimano: 48/35 ~ 54/40 | SRAM: 46/33 ~ 50/37 |
| SSR (standard) Geometry | 45 | 48 | 51 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|---|
| Recommended Height | 155–162 | 162–168 | 167–173 | 172–178 | 177–183 | 182–188 | 185–195 |
| A Reach | 364 | 370 | 375 | 382 | 389 | 397 | 404 |
| B Stack | 511 | 519 | 528 | 543 | 563 | 583 | 598 |
| C Seat Tube Angle | 75 | 74.5 | 74.5 | 74° | 73.75° | 73.5° | 73° |
| D Head Tube Angle | 70.8° | 71° | 71.2° | 72° | 72° | 72.25° | 72.5° |
| E Front Center | 578.3 | 585.2 | 592.1 | 591.4 | 605.3 | 615 | 626 |
| F Rear Center | 405 | 405 | 405 | 405 | 405 | 405 | 405 |
| G Bottom Bracket Drop | 78 | 78 | 75 | 75 | 72 | 72 | 72 |
| H Wheelbase | 970.4 | 977.4 | 985.3 | 984.6 | 999.6 | 1010 | 1020.6 |
| I Front Fork Offset | 55 | 55 | 55 | 50 | 50 | 50 | 50 |
| J Trail | 60.2 | 58.9 | 57.7 | 58 | 58 | 56.4 | 55 |
| K Head Tube Length | 110 | 117 | 129 | 140 | 164 | 184.5 | 199 |
| L Stand over | 715 | 724 | 738 | 754 | 777 | 799 | 829 |
| M Top Tube Length | 501 | 514 | 522 | 538 | 553.2 | 571 | 589 |
| Minimum Saddle Height | 59cm-2cm | 63cm-2cm | 67cm-2cm | 71cm-2cm | 73cm-2cm | 75cm-2cm | 75cm-2cm |
| Maximum Saddle Height | 71cm+2cm | 75cm+2cm | 79cm+2cm | 83cm+2cm | 87cm+2cm | 91cm+2cm | 93cm+2cm |
