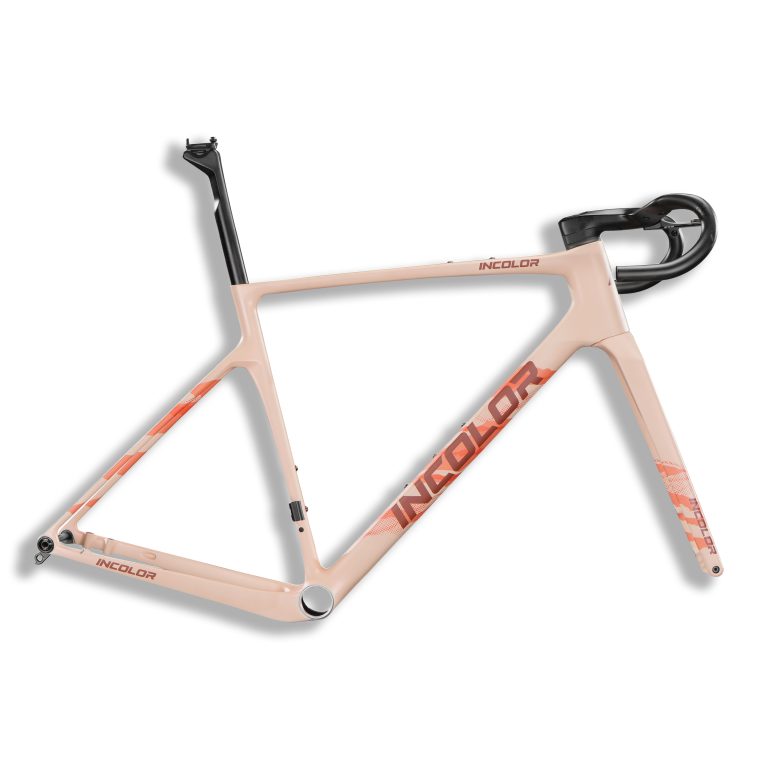

INCOLOR VOYAGER Gravel Frameset
1.999 € · Zzgl. Versandkosten. Kein Umsatzsteuerausweis nach § 19 UStG.
1
Frame Size
Auswählen
2
Frame Color
Auswählen
3
Übersicht
1.999 €
Frame Size
—
Frame Color
—
Gesamt1.999 €
Beschreibung
Born from the Speedster DNA. Re-imagined for gravel.
- Internal routing, clean aesthetics, and lightweight aluminum accessory package
- Lifetime Warranty and Crash Damage Discount
- Please choose an available size of handlebar between INCOLOR GRAVEL and INCOLOR ROAD from Optional Components
Specifications
| Weight | Ultra-light T800 carbon frame: 850 g (Size 54, unpainted) |
|---|---|
| Design cues | Inherits the SPEEDSTER’s DNA – refined for gravel performance |
| Stiffness | XC-level 190 N/mm BB stiffness with reinforced slim tubing |
| Tire clearance | fits up to 45 C gravel tyres |
| Max Chainrings | 1× (50 T) and 2× (52/36 T) drivetrain compatible |
| Compatibility | UDH dropout system | 27.2 mm seatpost | 1.5-inch headset |
| Geometry | tuned for control and stability on both tarmac and trails |
| VOYAGER Geometry | 45 | 48 | 51 | 54 | 57 |
|---|---|---|---|---|---|
| Recommended Height | 155–162 | 162–168 | 167–173 | 172–178 | 177–186 |
| A Reach | 358 | 366 | 375 | 385 | 397 |
| B Stack | 515 | 526 | 539 | 555 | 580 |
| C Seat Tube Angle | 75° | 74.5° | 74° | 74° | 73.5° |
| D Head Tube Angle | 70° | 70.5° | 71° | 71.5° | 72° |
| E Front Center | 580 | 588 | 592 | 603 | 618 |
| F Rear Center | 415 | 415 | 415 | 415 | 415 |
| G Bottom Bracket Drop | 74 | 74 | 74 | 74 | 74 |
| H Wheelbase | 984 | 991 | 996 | 1007 | 1022 |
| I Front Fork Offset | 53.7 | 53.7 | 49.7 | 49.7 | 49.7 |
| J Trail | 70.3 | 67 | 67.9 | 64.7 | 61.4 |
| K Head Tube Length | 109 | 119 | 129 | 144 | 168 |
| L Stand over | 735 | 748.5 | 762 | 781 | 806 |
| M Top Tube Length | 496 | 512 | 522 | 544 | 569 |
