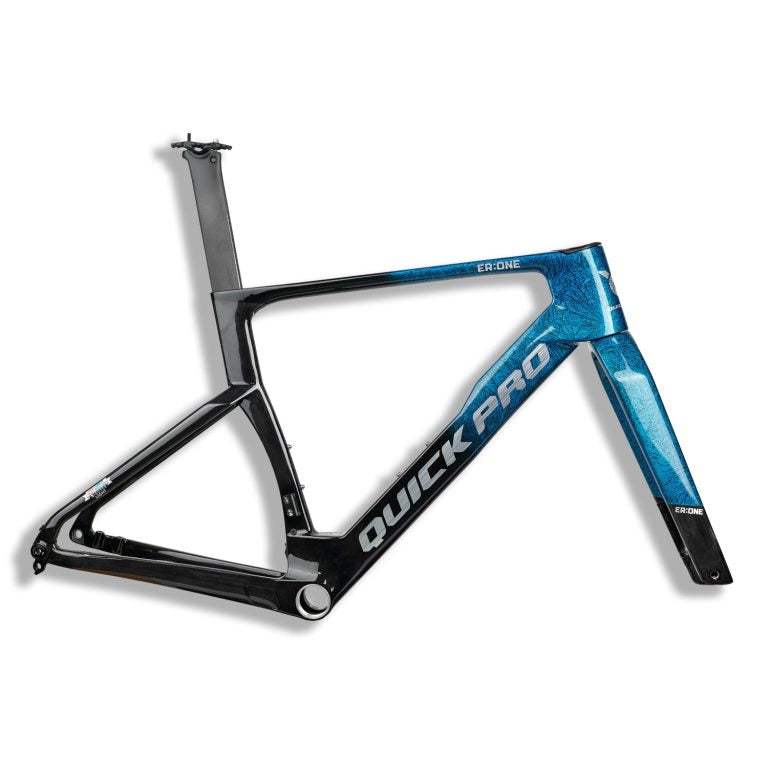

QUICK PRO ER:ONE AERO Road Bike FRAMESET
Beschreibung
We continue to believe that racing is the ultimate testing and development ground for new products. The ER:ONE made it’s debut with our team at the 2024 Tour of Hainan taking a stage win in it’s very first race.
- 840g±5% frame. 445g±5% fork (Size M, without paint & accessories)
- Aero optimized with wind-tunnel verified CFD model
- High Modulus Carbon Fiber (T1100 + M65)
- True Full Monocoque Production
- T47 bottom bracket with 68mm shell width
- Developed with direct feedback from our UCI Continental Team
- UCI Approved
- Now available in the Harlequin paint scheme
Specifications
| Race DNA | Lightweight, Stiff, Aero |
|---|---|
| Max Tire | 700Cx32C |
| A Size/seat tube length (mm) Equivalent Size | XS/430 49cm | S/460 52cm | M/490 54cm | L/520 56cm | XL/550 58cm |
|---|---|---|---|---|---|
| Reach (mm) | 380 | 381 | 386 | 393 | 406 |
| Stack (mm) | 505 | 521 | 538 | 556 | 572 |
| B Horizontal top tube length (mm) | 515 | 525 | 540 | 558 | 575 |
| C Seat tube angle (degrees) | 75.0 | 74.5 | 74.0 | 73.5 | 73.5 |
| D Head tube angle (degrees) | 70.0 | 71.0 | 72.0 | 73.0 | 73.0 |
| E Head tube length (mm) | 105 | 118 | 132 | 148 | 165 |
| F Chainstay length (mm) | 408 | 408 | 408 | 408 | 408 |
| G Wheelbase (mm) | 988 | 985 | 987 | 991 | 1008 |
| H Fork rake/offset (mm) | 45 | 45 | 45 | 45 | 45 |
| I Bottom bracket drop (mm) | 70 | 70 | 70 | 70 | 70 |
| J Fork length (mm) | 373 | 373 | 373 | 373 | 373 |
| K Stand-over height (mm) | 746 | 762 | 779 | 797 | 813 |
| Specification | XS / 430 | S / 460 | M / 490 | L / 520 | XL / 550 | XXL / 584 |
|---|---|---|---|---|---|---|
| Frame Size / Seat Tube Length (mm) | 430 | 460 | 490 | 520 | 550 | 584 |
| Effective Top Tube Length (mm) | 515 | 525 | 540 | 558 | 575 | 596 |
| Seat Tube Angle (°) | 75.0 | 74.5 | 74.0 | 73.5 | 73.5 | 73.0 |
| Head Tube Angle (°) | 70.0 | 71.0 | 72.0 | 73.0 | 73.0 | 73.5 |
| Head Tube Length (mm) | 105 | 118 | 132 | 148 | 165 | 185 |
| Chainstay Length (mm) | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase (mm) | 985 | 985 | 987 | 991 | 1008 | 1019 |
| Fork Offset / Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| Bottom Bracket Drop (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| Fork Length (mm) | 373 | 373 | 373 | 373 | 373 | 373 |
| Standover Height (mm) | 746 | 762 | 779 | 797 | 813 | 846 |
| Stack-to-Reach Ratio (STR) | 1.32 | 1.36 | 1.39 | 1.40 | 1.40 | 1.42 |
| Reach (mm) | 380 | 381 | 386 | 393 | 406 | 415 |
| Stack (mm) | 505 | 521 | 538 | 556 | 572 | 593 |
