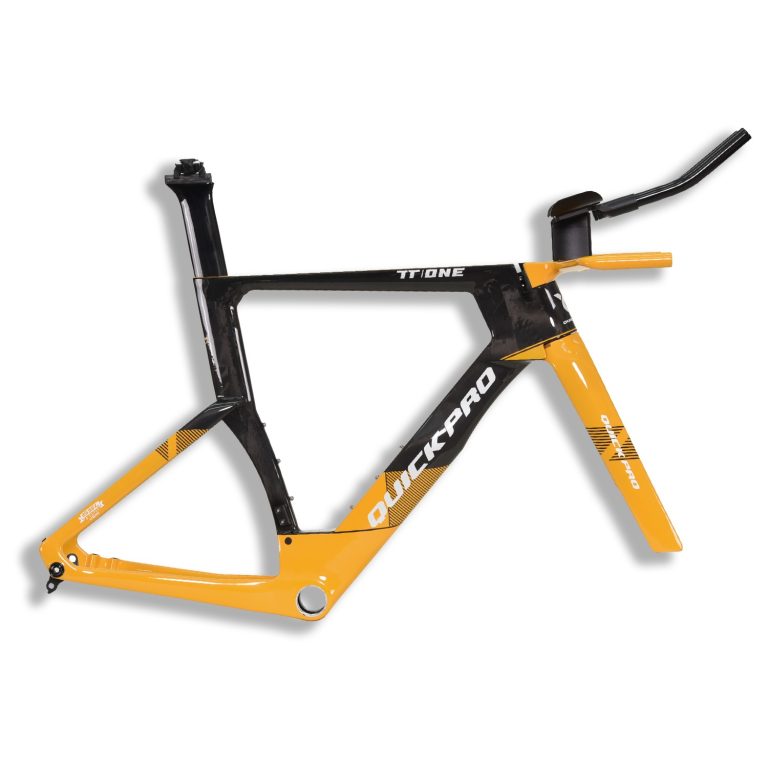

QUICK PRO TT:ONE Carbon Time Trial Bike FRAMESET
Beschreibung
Having established itself as a serious player in the competitive cycling world, Quick Pro needs no introduction at this point. The brand’s rise is backed by a pedigree of high-performance engineering, with the ER:ONE claiming a hefty share of victories in its debut season and…
- Wind-tunnel optimized aerodynamic tube profiles for minimal drag
- High-modulus Toray T1100 and M56 carbon fiber construction
- Monolith one-piece molding technology for stiffness to weight optimization
- Lightweight 1089g frame and 399g fork (Size S)
- UCI-approved geometry for professional racing compliance
- Integrated aerodynamic carbon cockpit with internal cable routing
| A – Size / Seat Tube Length (mm) | XXS / 455 | XS / 498 | S / 555 | M / 560 | L / 565 |
|---|---|---|---|---|---|
| B – Effective Top Tube (mm) | 504 | 508 | 522 | 538 | 555 |
| C – Seat Tube Angle (°) | 75° | 75° | 75° | 75° | 75° |
| D – Head Tube Angle (°) | 71° | 71° | 72° | 72° | 72° |
| E – Head Tube Length (mm) | 80 | 85 | 90 | 95 | 100 |
| F – Chainstay Length (mm) | 410 | 410 | 410 | 410 | 410 |
| G – Wheelbase (mm) | 968 | 973 | 980 | 996 | 1013 |
| H – Fork Offset (mm) | 45 | 45 | 45 | 45 | 45 |
| I – Bottom Bracket Drop (mm) | 75 | 75 | 75 | 75 | 75 |
| J – Fork Length (mm) | 365 | 365 | 365 | 365 | 365 |
| K – Standover Height (mm) | 735 | 760 | 802 | 808 | 814 |
| Reach (mm) | 375 | 378 | 390 | 405 | 420 |
| Stack (mm) | 481 | 486 | 494 | 499 | 503 |
| Size | Recommended Rider Height (cm) |
|---|---|
| XXS / 455 | 160 – 168 |
| XS / 498 | 168 – 174 |
| S / 555 | 172 – 178 |
| M / 560 | 178 – 184 |
| L / 565 | 186 – 192 |
Versand
Bestellungen werden innerhalb von 3 Werktagen bearbeitet. Laufradsätze und Rahmensets werden verpackt und versichert versandt; Kompletträder kommen zu 95 % montiert an. Sendungsverfolgung per E-Mail. Gemäß § 19 UStG wird keine Umsatzsteuer ausgewiesen.
Rückgabe
15 Tage Rückgabefrist für neue, unbenutzte Produkte in Originalverpackung. Hin- und Rückversandkosten werden von der Erstattung abgezogen.
Garantie
Abgedeckt durch die begrenzte Herstellergarantie gegen Material- und Verarbeitungsfehler. Pangu wickelt jeden Fall mit der Marke für dich ab — eine Anlaufstelle, kein Hin und Her.
