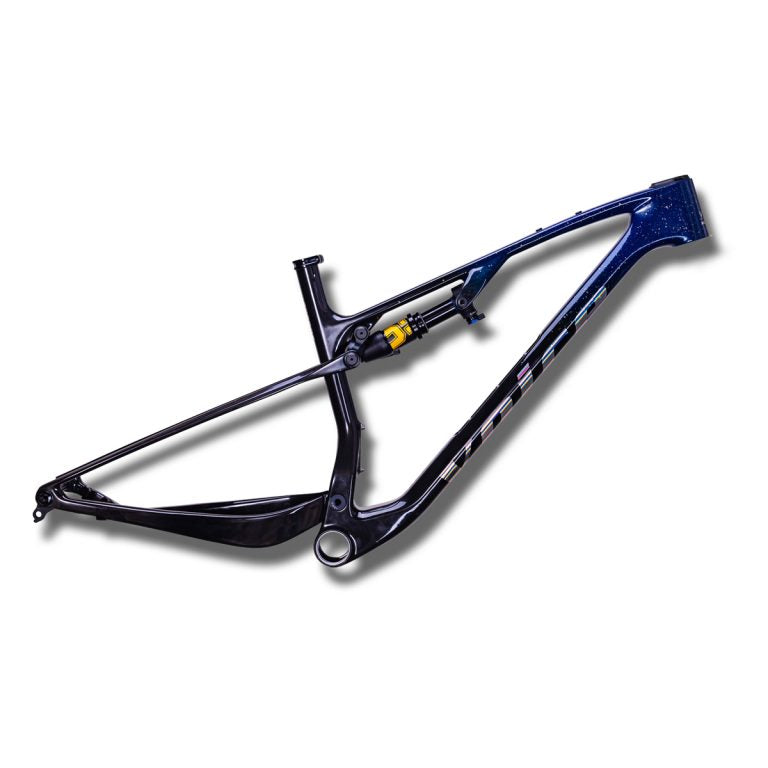

Voicevelo Chorus V-Peaks Full Suspension XC Frameset
Beschreibung
A chorus hits its peak when the high, low, and harmony parts sync up for a perfect performance. VoiceVelo applied this same logic to their XC platform. When a full-suspension rig is at work, the linkage arcs through its travel, the seatstays drive forward, and the rear wheel…
- Impact-first tube design
- Functional division of frame areas
- T47 bottom bracket
- Fully integrated / Support drop seatpost
- Triple bottle cage mounts
- Flat mount brake caliper compatible
- 12*148mm dropout with UDH hanger
Specifications
| Recommend Usage | XCO, XCM, Down Country, Cross Country |
|---|---|
| Maximum tire size | 29*2.6 |
| Size | S-M-L |
| Recommend suspension travel | Front: 110-130mm / Rear: 110-120mm |
| Suspension spec | 185*50/55 TR |
| Weight | 1495 grams (Size M, suspension or metal parts not included) |
| Size | S | M | L |
|---|---|---|---|
| Suggested Rider Height (cm) | 159–169 | 168–178 | 177–187 |
| A – Seat tube | 413 | 433 | 458 |
| B – Stack | 581 | 590 | 590 |
| C – Reach | 425 | 445 | 470 |
| D – Effective top tube | 571 | 595 | 620 |
| E – Head tube length | 80 | 90 | 90 |
| F – Head angle | 67° | 67° | 67° |
| G – Standover | 740 | 759 | 782 |
| H – BB drop | 35 | 35 | 35 |
| J – Effective seat tube angle | 78.3° | 78.3° | 77.8° |
| K – Chainstay | 428 | 428 | 428 |
| L – Front center | 700 | 725 | 749 |
| M – Wheelbase | 1128 | 1151 | 1177 |
| N – Fork offset | 44 | 44 | 44 |
| O – Fork length | 531 | 531 | 531 |
