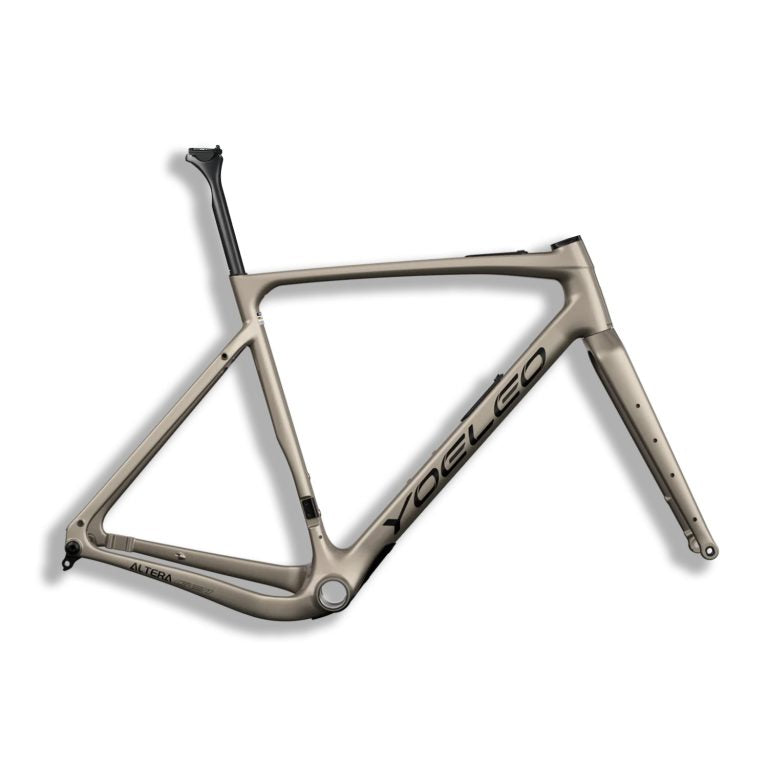

YOELEO Altera G21 DB Gravel Bike Frameset
1.420 € · Plus shipping. No VAT shown under §19 UStG.
1
Color
Choose
2
Frame Size
Choose
3
Fork Option
Choose
4
Review
1.420 €
Color
—
Frame Size
—
Fork Option
—
Total1.420 €
Description
- UCI Approved
Specifications
| Material | Toray 800 Carbon |
|---|---|
| Color | Champagne |
| Frame Weight | Champagne 1170g (+/-50g, 56cm) |
| BB | T47, supports Shimano/SRAM cranks |
| Max Tire | 700x53mm / 650Bx2.1” |
| Mounts | 4 Bottle / Mudguard / Cargo Rack |
| Handlebar | Integrated Carbon, multiple sizes |
| 45 | 49 | 52 | 54 | 56 | 58 | 60 | ||
|---|---|---|---|---|---|---|---|---|
| Size Recommendation | Rider Height | 160cm–168cm | 165cm–175cm | 172cm–180cm | 177cm–185cm | 182cm–190cm | 187cm–196cm | 193cm–201cm |
| A | SEAT TUBE LENGTH (mm) | 450 | 490 | 520 | 540 | 560 | 580 | 610 |
| B | TOP TUBE LENGTH (mm) | 510 | 515 | 536.4 | 551 | 566 | 577 | 592 |
| C | REACH (mm) | 373 | 373 | 379 | 383 | 387 | 390 | 396 |
| D | STACK (mm) | 512 | 531 | 549 | 566 | 586 | 611 | 640 |
| E | HEAD TUBE LENGTH (mm) | 79 | 98.5 | 107 | 134 | 145 | 171 | 200 |
| F | SEAT TUBE ANGLE | 75° | 75.0° | 74.0° | 73.5° | 73° | 73.0° | 73.0° |
| G | HEAD TUBE ANGLE | 69° | 69.5° | 70° | 70° | 72.2° | 72.3° | 72.6° |
| H | BOTTOM BRACKET DROP (mm) | 79 | 79 | 79 | 79 | 79 | 79 | 79 |
| I | CHAIN STAY LENGTH (mm) | 433 | 433 | 433 | 433 | 433 | 433 | 433 |
| L | FORK RAKE (mm) | 47 | 47 | 47 | 47 | 47 | 47 | 47 |
| M | FORK LENGTH (mm) | 401.5 | 401.5 | 401.5 | 401.5 | 401.5 | 401.5 | 401.5 |
| Handlebar Type | Gravel Bike / Road Bike Handlebar |
|---|---|
| Handlebar Material | 100% Carbon Fiber T800 |
| Finish | UD Matt |
| Decal | Black Glossy |
| Handlebar Stem | 80/90/100/110mm |
| Handlebar Width | 400/420/440mm |
| Angle | 10.2° |
| Reach | 80mm |
| Drop | 120mm |
| Steer Diameter | 28.6mm Compatible |
| Cable Type | Inner Cable / Outer Cable |
| Weight | 376g ± 15g |
| Comes with | Computer Holder, Spacers for rounded 1-1/8 inch (28.6mm) steerer, Top cap and outer cable bearing cover. |
| Standard | EN Standard |
