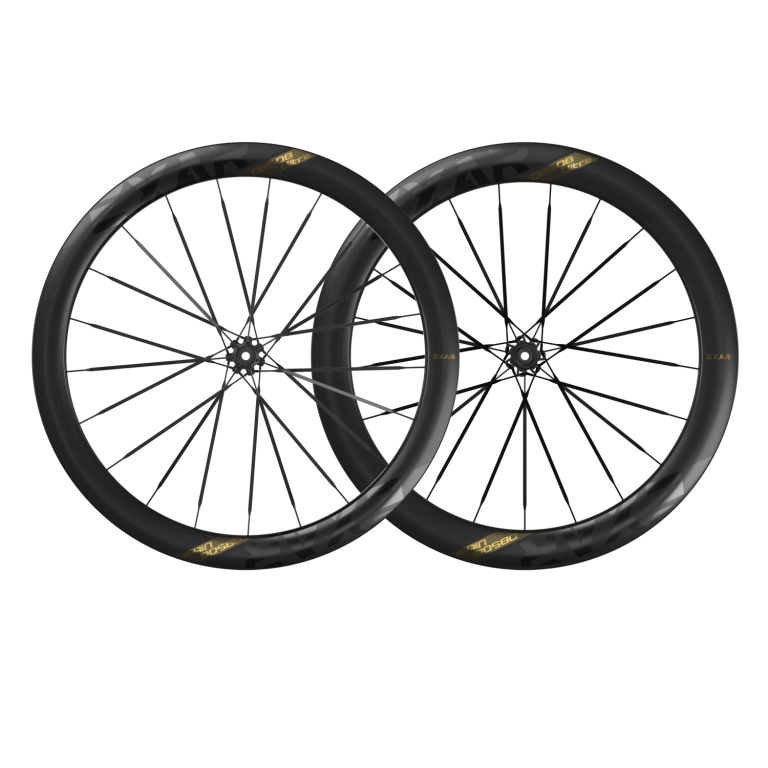

Magene 2025 EXAR Carbon Fiber Wheelset Ultra Series
1.199 € · Plus shipping. No VAT shown under §19 UStG.
1
Model (Rim Depth)
Choose
2
Freehub Type
Choose
3
Review
1.199 €
Model (Rim Depth)
—
Freehub Type
—
Total1.199 €
Description
In the pursuit of extreme performance, the 2025 new ultra series wheelset is fully equipped with top-level materials from spokes to bearings, creating elaborate hub and rim.
Specifications
| Brake | Disc Brake |
|---|---|
| Weight | 1350g ±3% (DB508) |
| External Rim Width | 30mm (DB508) |
| Internal Rim Width | 23mm (DB508) |
| Spoke | HI-MOD carbon fiber spokes with 0.8mm/1.2mm thickness |
| Ratchet | 36T (Compatible with DT hub system) |
| Bearing | Ceramic Bearings |
| Package Includes | Tubeless Rim Tapes*2, Rim Plugs*50, Tubeless Valves*2, User Manual*1 |
| Attribute | DB405 | DB508 | DB607 |
|---|---|---|---|
| Brake | Disc brake | ||
| Height | Front wheel 40mm, Rear wheel 45mm | Front wheel 50mm, Rear wheel 58mm | Front wheel 60mm, Rear wheel 67mm |
| Weight | 1280g | 1350g | 1460g |
| External Rim Width | 30mm | 30mm | Front wheel 32mm, Rear wheel 30mm |
| Internal Rim Width | 23 mm | ||
| Rim Material | Hi-MOD carbon fiber | ||
| Spoke | 4.0*1.2mm | 5.2*0.8mm | 5.2*0.8mm |
| Front Wheel Spoke Tension | 110kgf ±10% | ||
| Rear Wheel Spoke Tension | Drive side 130kgf ±10%, Non-drive side 110kgf ±10% | ||
| Ratchet | 36T Compatible with DT system. Replaceable ratchet with different tooth amount | ||
| Frame Spacing | 100/142mm thru-axle | ||
| Freehub | Standard Shimano 11-speed (Campagnolo N3W and Sram XDR freehub available separately) | ||
| Compatible Cassette | Shimano 8-12s, Sram 8-12s, Campagnolo 8-13s | ||
| Compatible Tire Type | Clincher tire, tubeless tire | ||
| Maximum Tire Pressure | 110psi for 28c, 100psi for 30c, 90psi for 32c | ||
| Package standard | Carbon fiber front wheel ×1, carbon fiber rear wheel ×1, tubeless rim tape ×2, manual ×1 |
Delivery
Orders are processed within 3 business days. Wheelsets and framesets ship boxed and insured; complete bikes arrive 95% assembled. Tracking via email. No VAT is shown under §19 UStG.
Returns
15-day return window for new, unused products in original packaging. Original and return shipping fees are deducted from the refund.
Warranty
Covered by the manufacturer's limited warranty against defects in materials and workmanship. Pangu runs every claim with the brand for you — one desk, no ping-pong.
