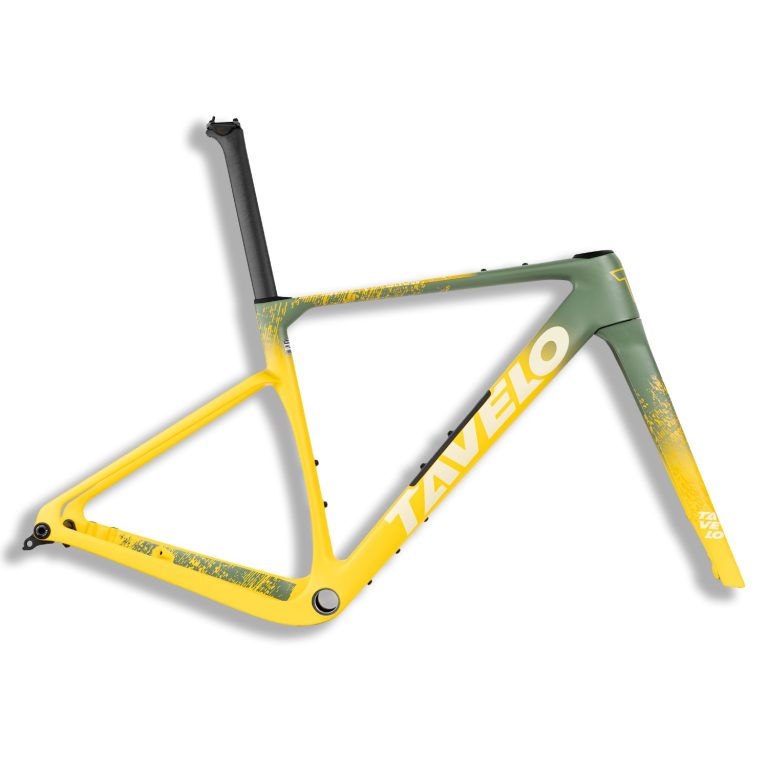

TAVELO GROW GRAVEL Bike Frameset

TAVELO GROW GRAVEL Bike Frameset

€1.650 EUR · Plus shipping. No VAT shown under §19 UStG.
1 Color Choose
2 Size Choose
3 Review €1.650
Color —
Size —
Total€1.650
Description

The Tavelo Grow is now available for general ordering.

  • Toray T800 carbon frame construction balancing weight, stiffness, and durability
  • Aero tube shaping designed for sustained speed on fast gravel
  • Clearance for up to 55 mm (front) / 50 mm (rear) tyres
  • Threaded BSA bottom bracket for reliability and easy servicing
  • UDH dropout for broad drivetrain compatibility and future-proofing
  • Fully internal cable routing for a clean, integrated finish
  • Lightweight chassis starting from approx. 830 g (raw frame)
  • Designed for high-speed gravel riding with stable, predictable handling
GROW Geometry XS S M L XL XXL
Race Fit Height (CM) 163–168 170–174 176–181 182–186 187–192 193–198
Comfort Fit Height (CM) 160–165 166–171 172–177 178–183 184–189 190–195
A Seat Tube Length 430 460 490 515 540 570
B Top Tube Length 520 530 550 567 586 606
C Head Tube Length 95 106 127 146 174 197
D Chainstay Length 423 423 423 423 423 423
E Head Tube Angle 70.5° 71° 71° 71.3° 71.3° 71.6°
F Seat Tube Angle 74° 74° 73.5° 73.5° 73° 73°
G Bottom Bracket Drop 80 80 78 78 75 75
H Front Center 588 598 614 622 642 652
I Fork Length 400 400 400 400 400 400
J Wheelbase 998 1008 1025 1033 1054 1064
K Fork Offset 55 55 55 55 55 55
Reach 368 375 385 395 406 414
Stack 530 540 558 579 603 627
Stand Over 747 768 794 816 843 869
Fork Trail 69.67 66.31 66.31 64.3 64.3 62.29
Frame Tavelo Grow Toray T800 carbon construction with internal cable routing
Fork Tavelo Grow Toray T800 carbon fork
Seatpost Tavelo carbon seatpost, Toray T800, 8mm offset
Frame Weight XS (830g), S (845g), M (860g), L (880g), XL (895g), XXL (960 ±25g) (raw finish)
Fork Weight 355g (raw finish)
Seatpost Weight 113g (without saddle clamp)
Headset Upper: 37–46.9mm Lower: 34.1–46.9mm
Bottom Bracket Threaded BSA
Front Thru-Axle 12×100mm (Tavelo GR-1)
Rear Thru-Axle 12×142mm (Tavelo GR-1)
Brake Mount Flat-mount disc
Derailleur Hanger UDH (Universal Derailleur Hanger)
Max Tire Clearance Front: 55mm Rear: 50mm
Delivery

Orders are processed within 3 business days. Wheelsets and framesets ship boxed and insured; complete bikes arrive 95% assembled. Tracking via email. No VAT is shown under §19 UStG.

Returns

15-day return window for new, unused products in original packaging. Original and return shipping fees are deducted from the refund.

Warranty

Covered by the manufacturer's limited warranty against defects in materials and workmanship. Pangu runs every claim with the brand for you — one desk, no ping-pong.
